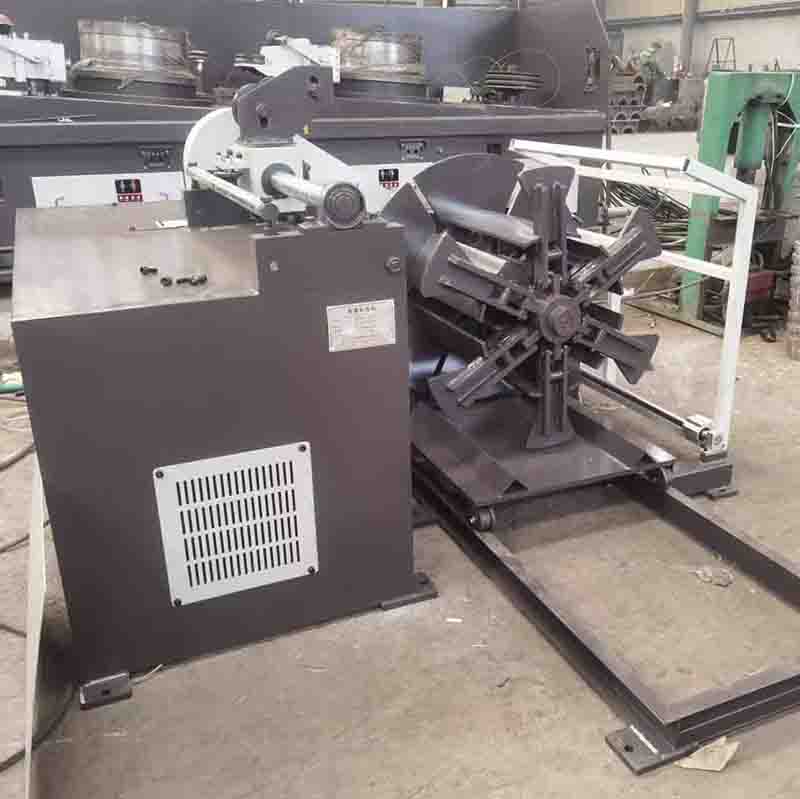

I-Beam Wheel Telescopic Reeling Machine

Availability:

可伸缩工字轮2

Model: SXS-800

Product name: SXS-800 series automatic retractable I-wheel take-up machine

Maximum take-up speed: 10m/s

Maximum take-up diameter: 5.0mm

Minimum take-up diameter: 2.0mm

I-wheel inner core retraction range: 50mm (single side)

Reduction method: 2LY 200 hardened gear reducer

I-wheel retraction method: screw reducer

Reeling method: pneumatic push-table trolley

Brake method: pneumatic disc brake

Control method: inverter (square PLD) control

Wire arrangement method: 50 light bar wire arranger

Shield: sliding door shield

Dimensions: 2500*2000*1300

Weight: 1700 kg

Wire take-up weight: 800-1000KG
