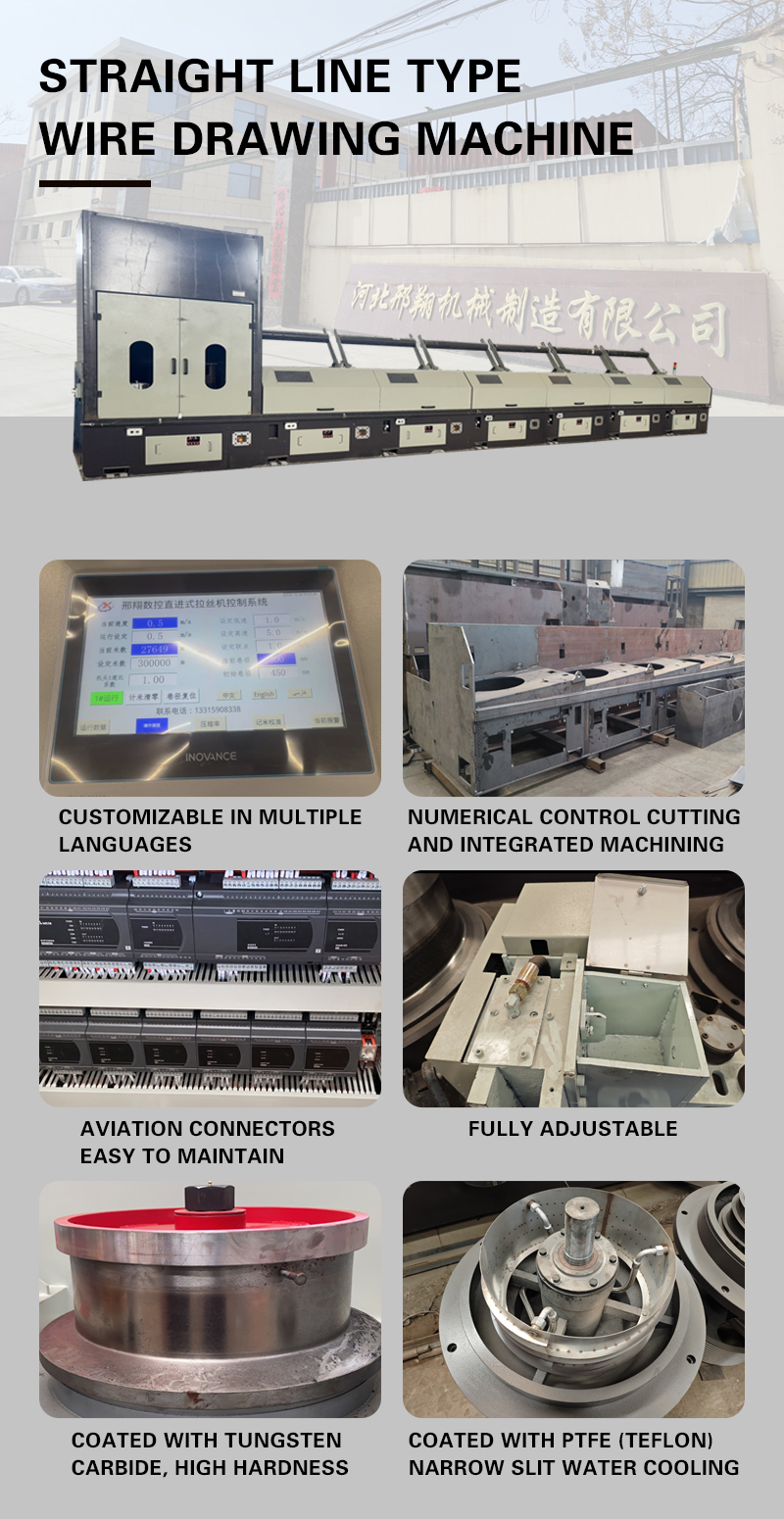

LZ/400 Type Striaight Line Wire Drawing Machine
Using Watson brand inverter
◆PLC control, Screen operate to realize human-machine interface.
◆Adopt new energy-saving motor.(Hebei Shunhua Brand)
◆ Using external pneumatic lift wheel sensor, smooth adjustment and easy operation.
◆ 400 spray Capstan, hardness 60 degrees, no jumpers, no crimping, capstan made of tungsten carbide, and the surface treatment is mirror coating.
There is a cooling device inside. When the wire drawing machine is working, the spray mode is activated in the inner of the capstan to help the capstan cool down, to help maintain the high-speed operation of the machine.
◆ The hopper adopts an all-round adjustable hopper, which makes the wire evenly and does not produce slub wires.
◆ Cooling method, narrow can water cooling for cans, self-flow water cooling and direct water cooling for hopper.
◆ The speed control adopts a Hard faced spiral bevel gearbox.
| Parameter/Model | LZ-400 | LZ-560 |
| Drum Diameter (mm) | 400 | 550 |
| Maximum Drawing Passes | ≤14 | ≤12 |
| Maximum Infeed Diameter (mm) | 3.8 | 6.5-8.0 |
| Minimum Outfeed Diameter (mm) | 0.7 | 1.8 |
| Single Unit Power (KW) | 11-15 | 22-30 |
| Finished Product Speed (m/s) | 15 | 12 |

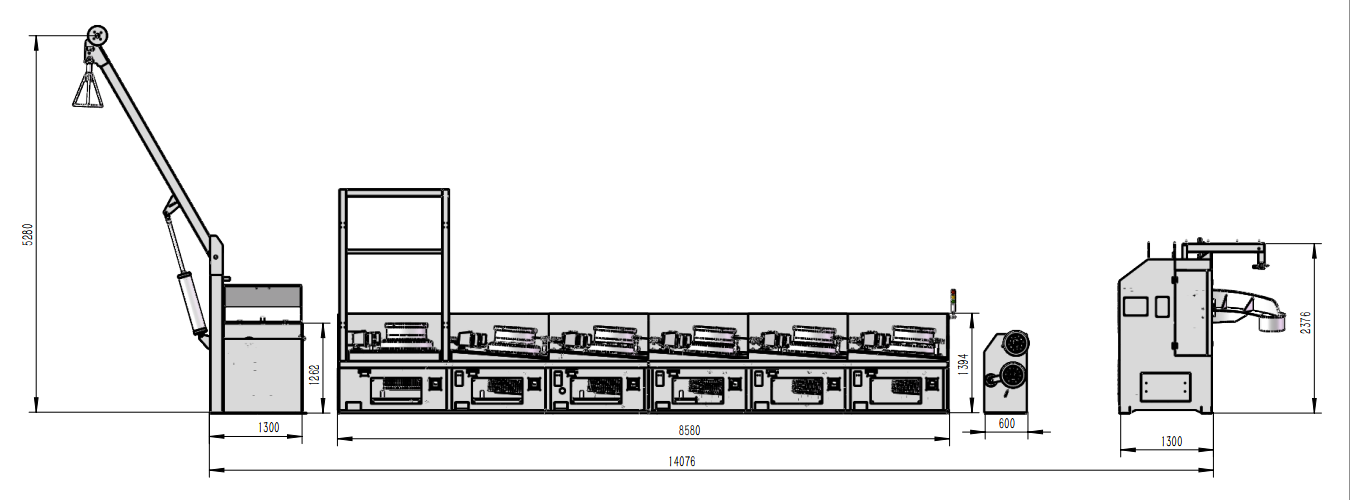

| Single Unit Dimensions (mm) | 1500*1500*2000 | 2000*2000*2300 |
| Single Unit Weight (KG) | 1200 | 2000 |
FAQ
Q:Are you manufacture or trading company?
A:We are manufacture. Our factory specialized in this business field since 1985, So we can give you a directly factory competitive price with customized request.
Q:Do you inspect the finished products?
A:Yes,we have QC departmengt.Will inspect the machine before shipping,to ensure there is no problem of the machine.
Q:How about after-sales service process?
A:We supply the detailed instructment and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Surely,special technical engineers supply urgent technical support and consulting,at the same time,we assign the technical engineers to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure they the personal and property safety, and pay 80 salaries per day.
Equipment Program part is life-long maintenance.
Q:How about the quality guarantee?
A:Usually one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Surely can be negotiable.
Q:How about the payment term?
A:T/T,L/C,trade assurance,we can all accept.
Q:Do you have import & export right?
A:Yes,we have,so we can export the carton machines to you directly,without any trading company agency.
