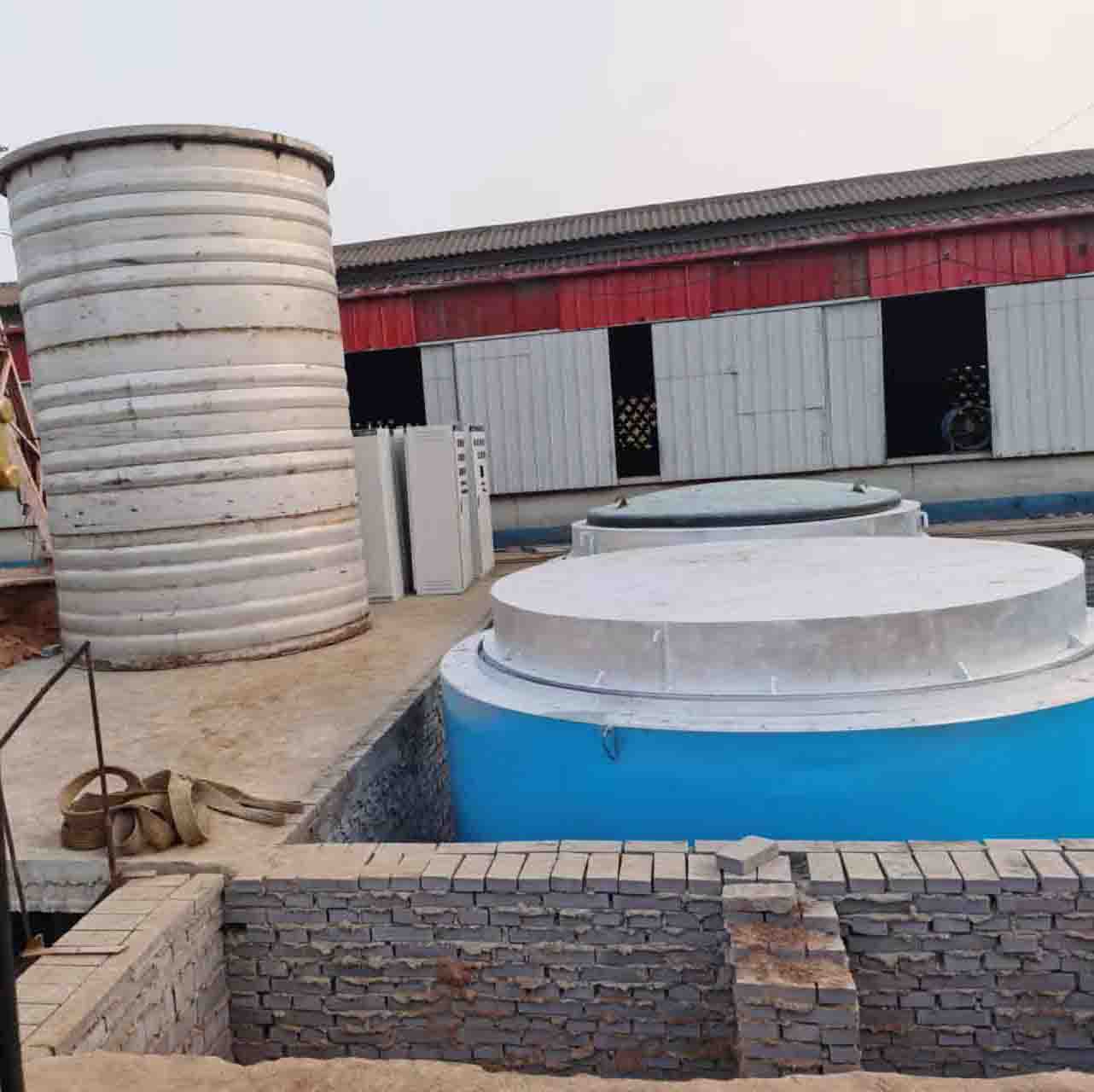

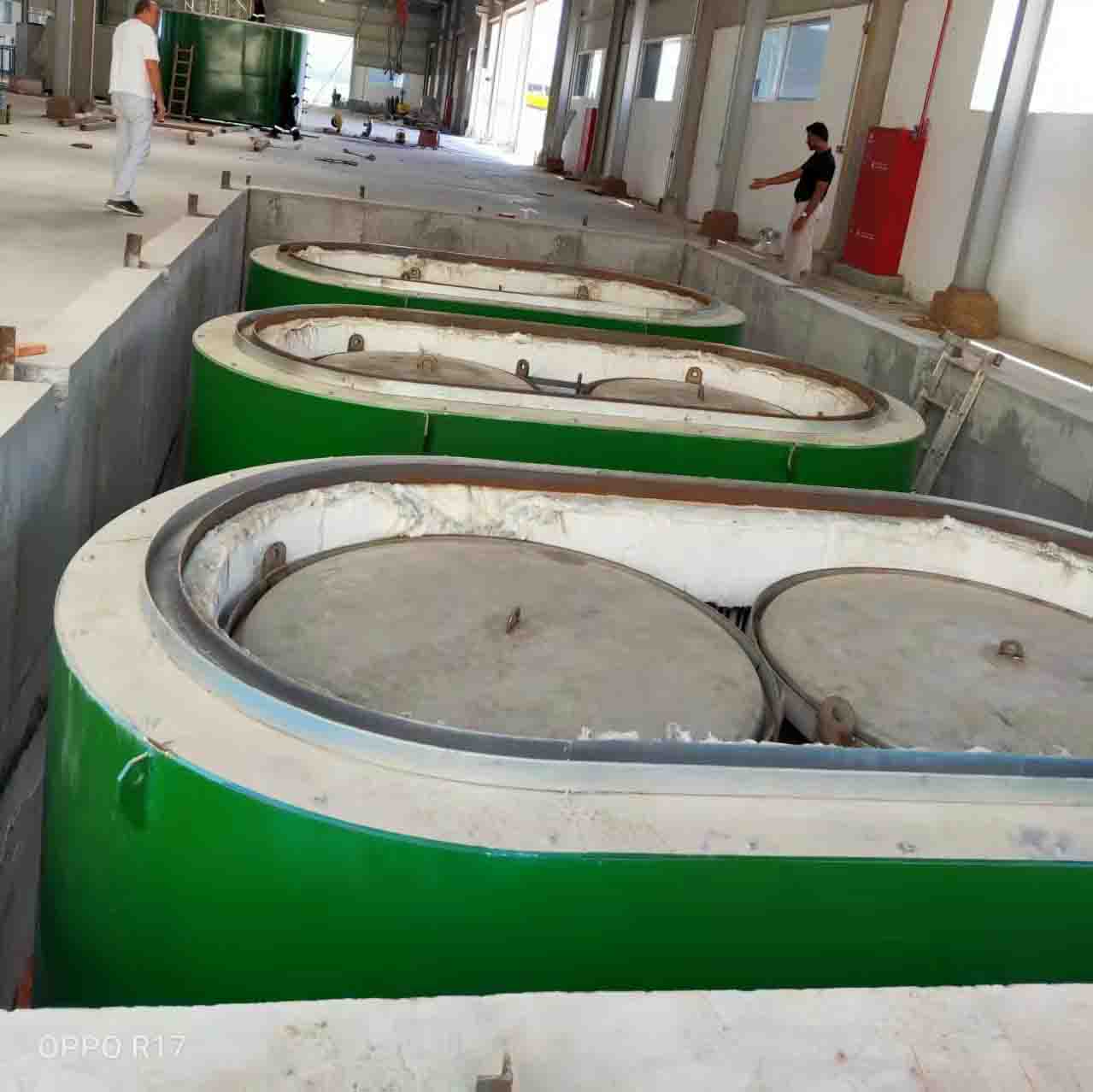

Pit Type Annealing Furnace

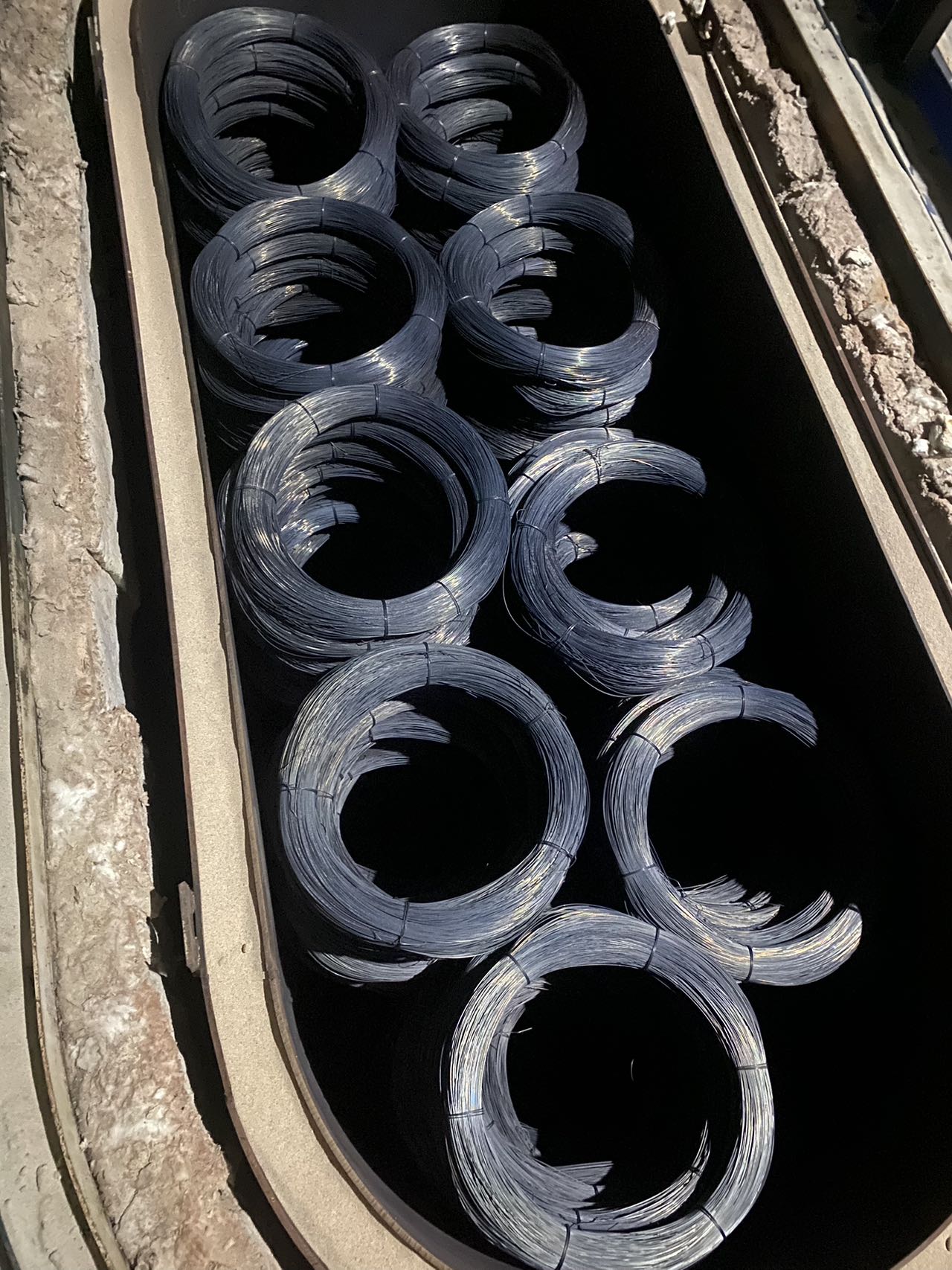

furnace wire heating after power on, stainless steel inner tank, better thermal conductivity, self-burning coal furnace with aluminized tank
| Model | RJ3-150 | RJ3-260 | RJ3-420 |
| Maximum Temperature (°C) | 900°C | 900°C | 900°C |
| Power (KW) | 0-150KW adjustable | 0-260KW adjustable | 0-420KW adjustable |
| Voltage (V) | 380V | 380V | 380V |
| Control Voltage (V) | 220V | 220V | 220V |
| Heating Zones | 2 zones (upper, lower) | 2 zones (upper, lower) | 3 zones |
| Effective Working Dimensions (mm) | - | 3200*1500*2100 | 2500*2500 |
| Overall Dimensions (mm) | - | 3900*1600*2100 | 3400*3170 |
| Weight (KG) | - | 8000kg | 11000kg |

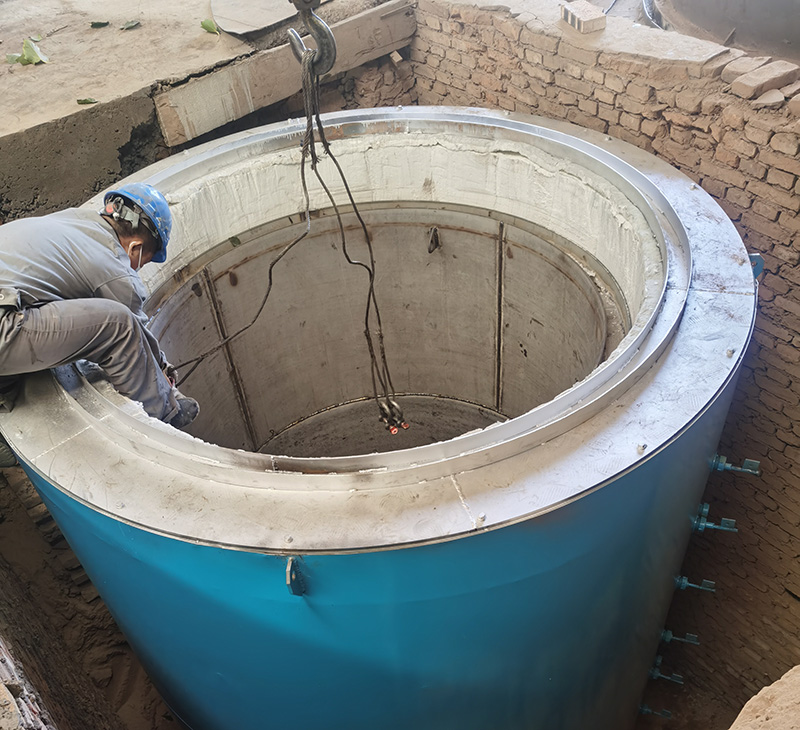

1. Furnace shell:
Made of rolled steel plate. Triangular ribs are designed at the flanges of the bottom plate and the furnace shell opening, and 100 channel steel support ribs are designed inside the furnace shell. The furnace bottom is welded with 100 channel steel and iron plate. The overall rigidity and sealing of the furnace are ensured.
2. Furnace bottom:
Refractory bricks are used for masonry, diatomaceous earth insulation bricks are laid on the lower layer of the bottom, lightweight insulation bricks are laid on the middle layer, and heavy bricks are laid on the upper layer, which is convenient for the load-bearing and loading and unloading of workpieces and increases sealing.
3. Furnace body:
It adopts a full refractory fiber structure with excellent energy-saving performance. It can save about 30% energy compared with the same specification of brick resistance furnace, and the heating speed is doubled. The temperature resistance grade of refractory fiber is ≤1200℃. The service life is much longer than that of brick furnace. Fiber material parameters: The fiber is compressed into a prefabricated block. The fiber use temperature is about 1300℃. Under this process condition, the linear shrinkage is less than 6% for long-term use. The Al203 content in the material is 45-50%, and Al203+Si02 is greater than 96%. The normal bulk density is 110Kg/m3, and it is 200-230Kg/m3 after compression. (The fiber material is high-purity. Thickness 320mm)
4. Heating element

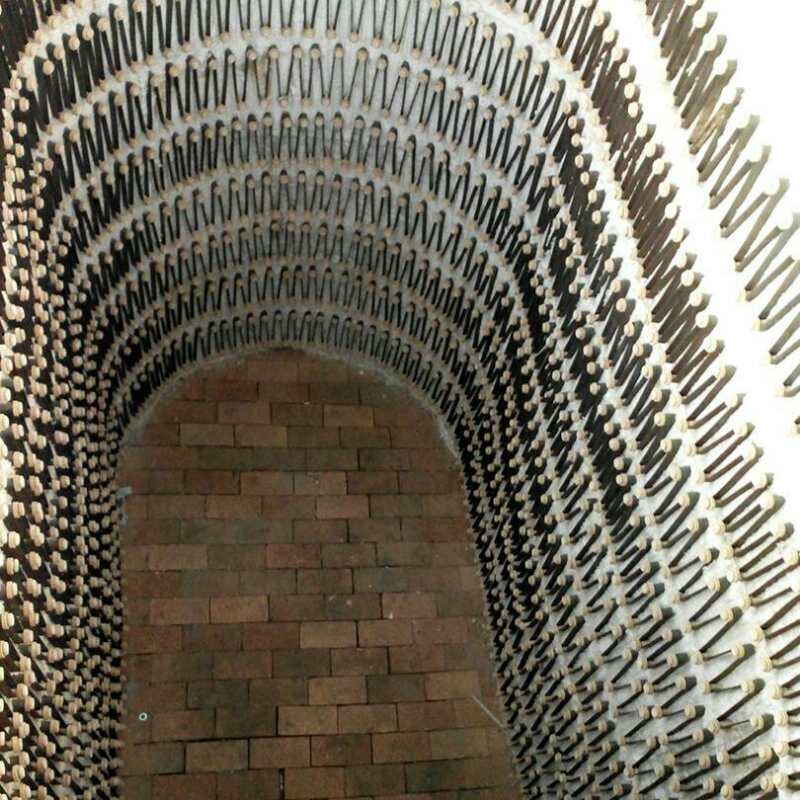

The electric furnace heating element adopts electric belt, which is installed on the furnace, side, wall and bottom of the furnace, which is firm and reliable
Insulation non-metallic materials should be used for installation to prevent inductance and electric heat from being transferred to the metal skin, causing local overheating and other phenomena. High-temperature and high-radiation electric heating alloy flat belt is used, with low surface load (1.4w/cm2) and long life design.
With bottom heating
5. Control system
Guolong program segment intelligent temperature control instrument, thyristor control. Delixi Electric Appliance, with over-temperature alarm function.
The distribution of electric heating elements is divided into 3 temperature control zones in the furnace, including the upper, middle, lower and bottom parts.
The lead-out rods of the electric heating elements are locally led out and equipped with protective covers. At the same time, the Guolong meter installed in the control cabinet has the functions of compiling, modifying, deleting, accessing and querying the process program or process curve, and running the real-time acquisition of control and alarm data, storage and query display and download and print at any time.
