Availability: | |
---|---|
xingxiang

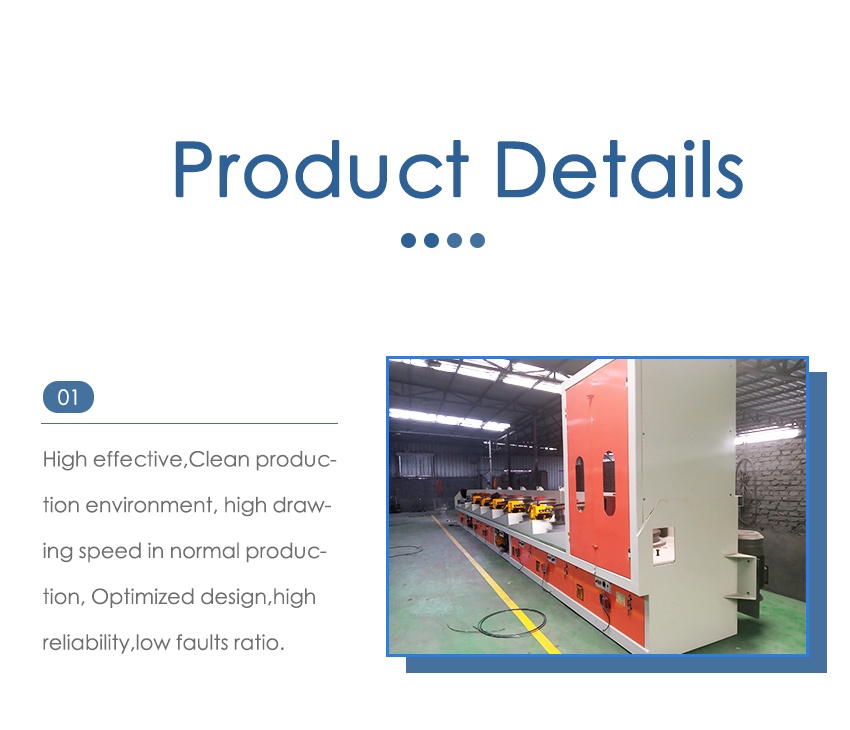

01.High effective,Clean production environment, high drawing speed in normal production, Optimized design,high reliability,low faults ratio.

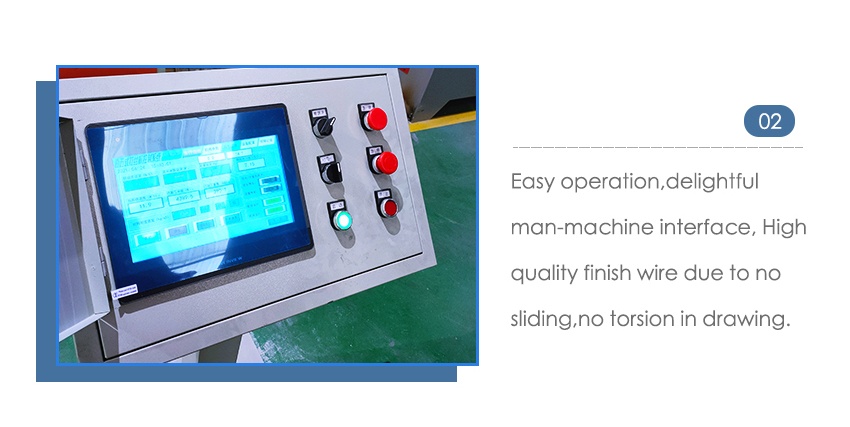

02.Easy operation,delightful man-machine interface, High quality finish wire due to no sliding,no torsion in drawing.

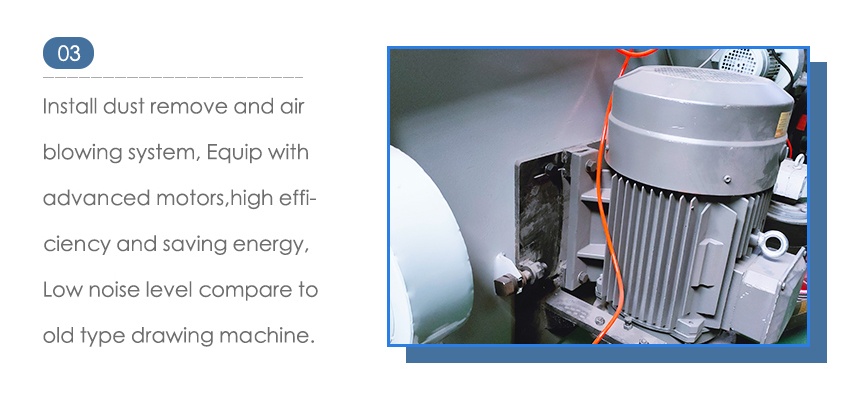

03.Install dust remove and air blowing system, Equip with advanced motors,high efficiency and saving energy, Low noise level compare to old type drawing machine.

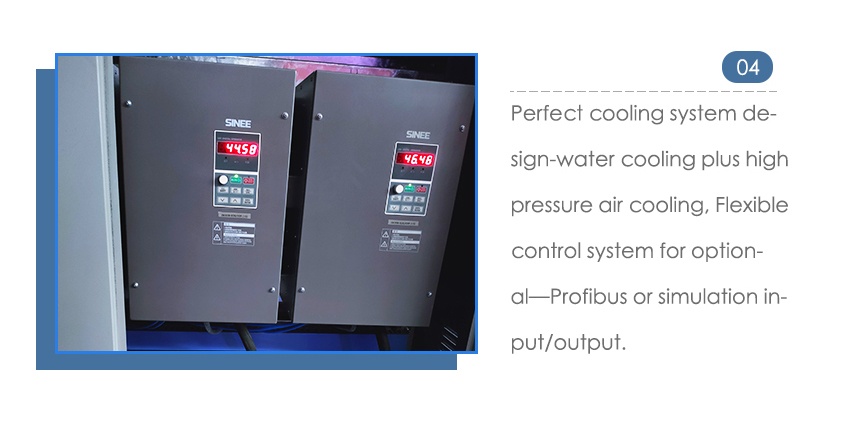

04.Perfect cooling system design-water cooling plus high pressure air cooling, Flexible control system for optional—Profibus or simulation input/output.

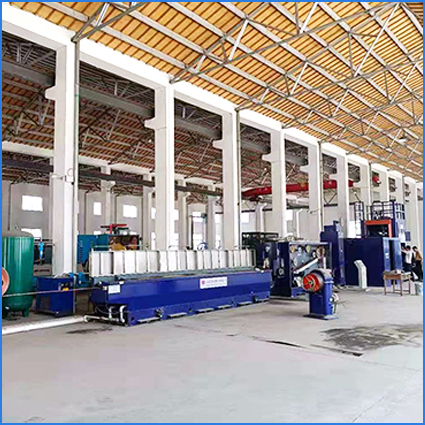

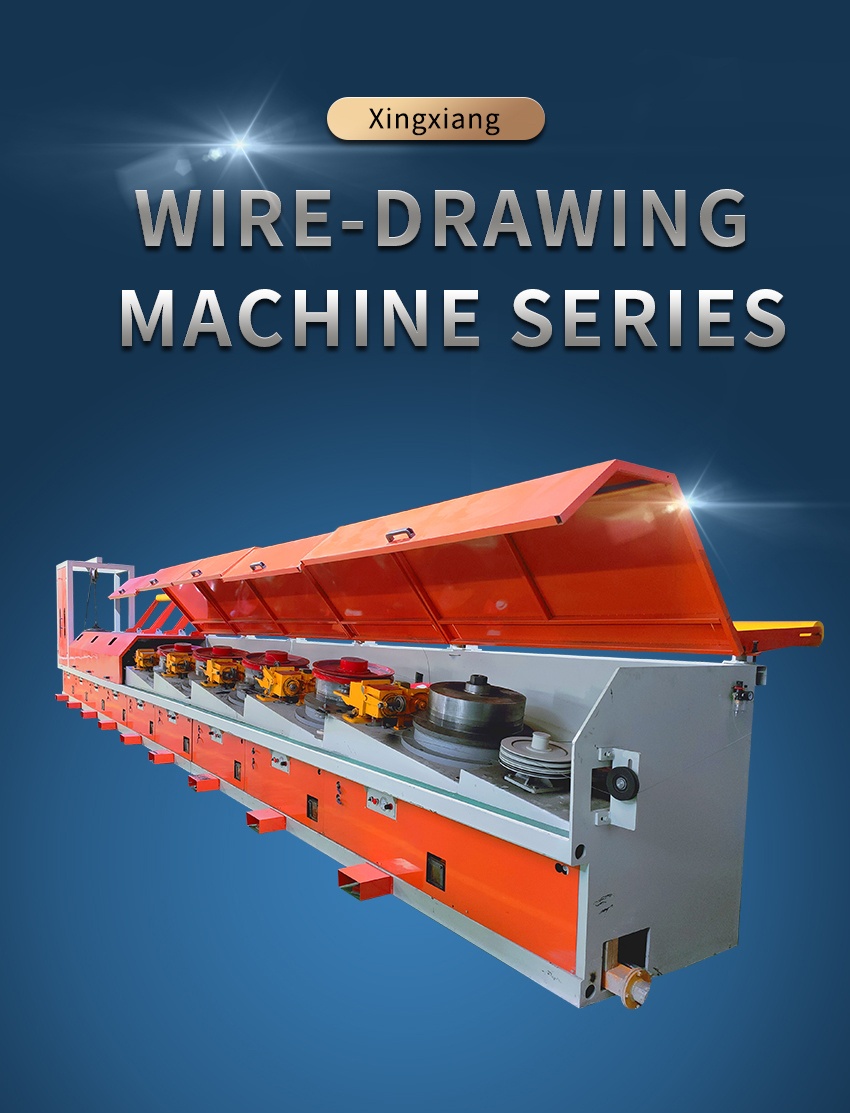

Wire-Drawing Machine Series

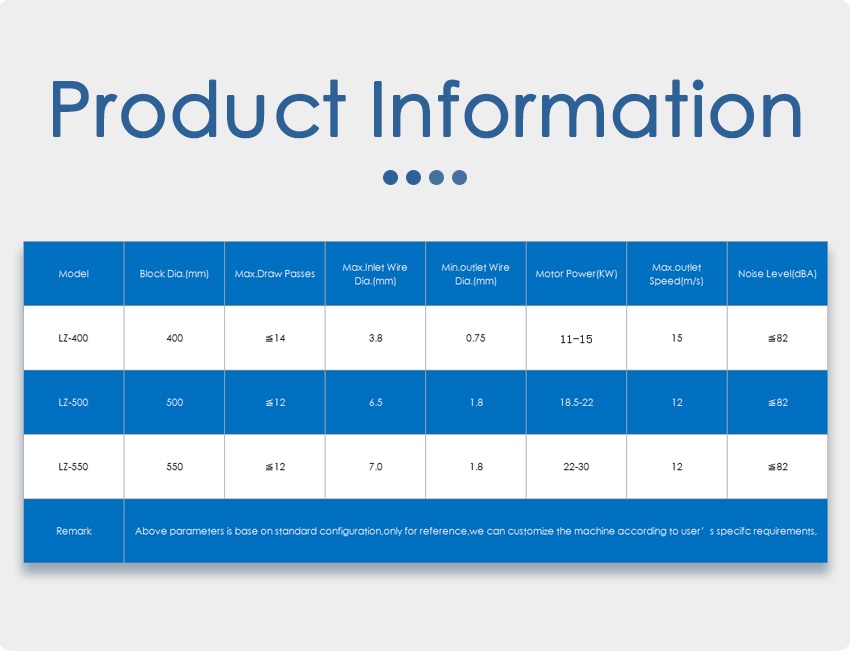

Model | Block Dia.(mm) | Max.Draw Passes | Max.Inlet Wire Dia.(mm) | Min.outlet Wire Dia.(mm) | Motor Power(KW) | Max.outlet Speed(m/s) | Noise Level(dBA) |
LZ-400 | 400 | ≦14 | 3.8 | 0.75 | 11-15 | 15 | ≦82 |
LZ-500 | 500 | ≦12 | 6.5 | 1.8 | 18.5-22 | 12 | ≦82 |
LZ-550 | 550 | ≦12 | 7.0 | 1.8 | 22-30 | 12 | ≦82 |
Remark | Above parameters is base on standard configuration,only for reference,we can customize the machine according to user′s specifc requirements, | ||||||

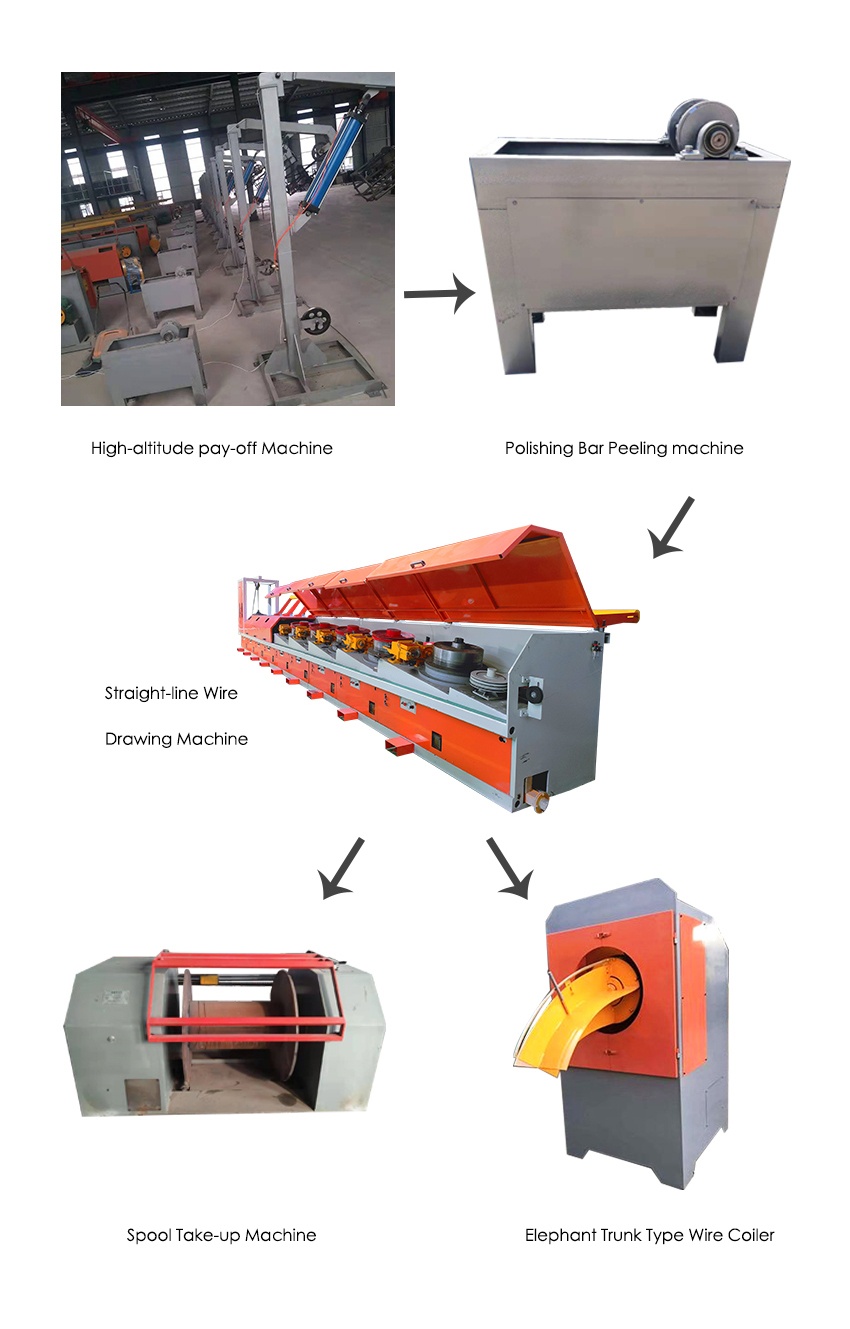

High-altitude pay-off Machine----Polishing Bar Peeling machine----Straight-line Wire Drawing Machine---Spool Take-up Mchine---Elephant Trunk Type Wire Coiler
Wire And Cable Industry
Construction Tie Wire Industry
Drawn Wire Industry
Wire Industry

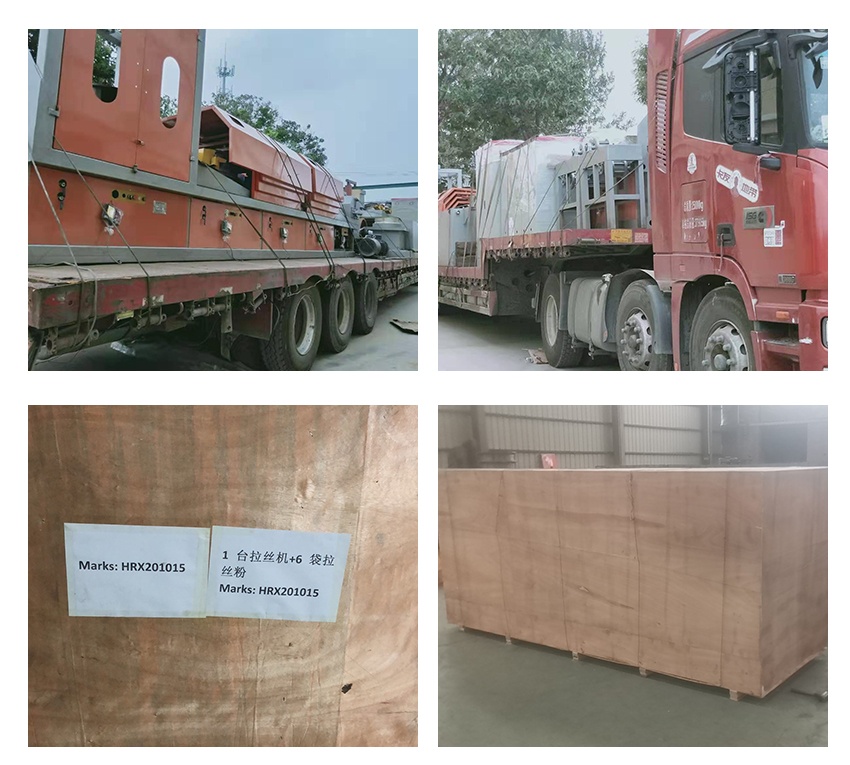

Wire-Drawing Machine Series-Product Packaging
Wire-Drawing Machine Series-Product Packaging
Size | Weight | Packaging Details |
Non-standard, customized design | 1.2 T-10T | The normal package is plastic flm. If customer request, the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Non-standard, customized design | 1.2 T-10T | Main mechanical plastic packaging and steel wire fixed in the container, Accessories are packed in wooden cases |
Customer Visit

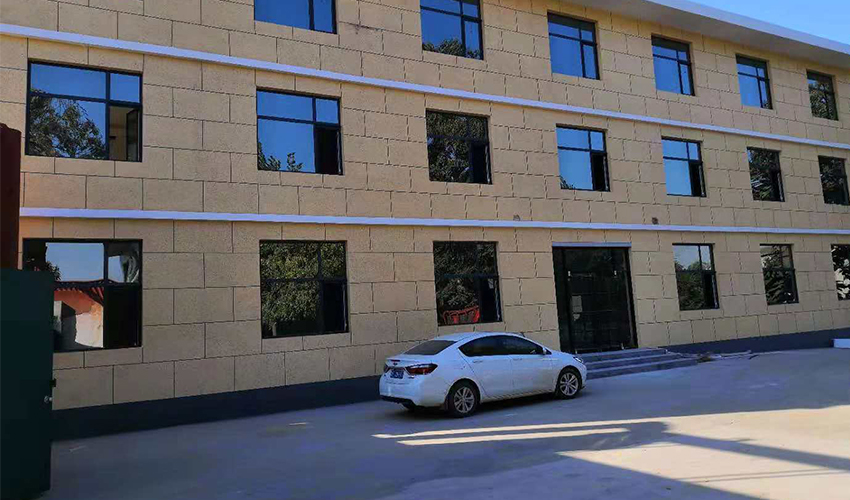

Founded in 2018 Hebei Xingxiang Machinery Manufacturing Co. , Ltd, original name Ren County Jinxiang Manufacturer, is one of the largest and the most powerful enterprises in Ren County. Located in Xingtai City, Hebei Province, we enjoy convenient access to major transportation networks.
Our company possess advanced facilities as CNC machining center, CNC machine tools, large vertical lathe and various first-class processing and welding equipment more than 30 sets.
To pursue "professional qualification and brand building” corporate objective and basing itself upon and giving play to existing advantages, taking “superior quality and honest price" as tenet, Xingxiang Machinery Manufacturing Co. , Ltd are prepared to expand wire-drawing international markets and seek mutual development with all of our customers.
Q:Are you manufacture or trading company?
A:We are manufacture. Our factory specialized in this business field since 1985, So we can give you a directly factory competitive price with customized request.
Q:Do you inspect the finished products?
A:Yes,we have QC departmengt.Will inspect the machine before shipping,to ensure there is no problem of the machine.
Q:How about after-sales service process?
A:We supply the detailed instructment and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Surely,special technical engineers supply urgent technical support and consulting,at the same time,we assign the technical engineers to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure they the personal and property safety, and pay 80 salaries per day.
Equipment Program part is life-long maintenance.
Q:How about the quality guarantee?
A:Usually one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Surely can be negotiable.
Q:How about the payment term?
A:T/T,L/C,trade assurance,we can all accept.
Q:Do you have import & export right?
A:Yes,we have,so we can export the carton machines to you directly,without any trading company agency.
